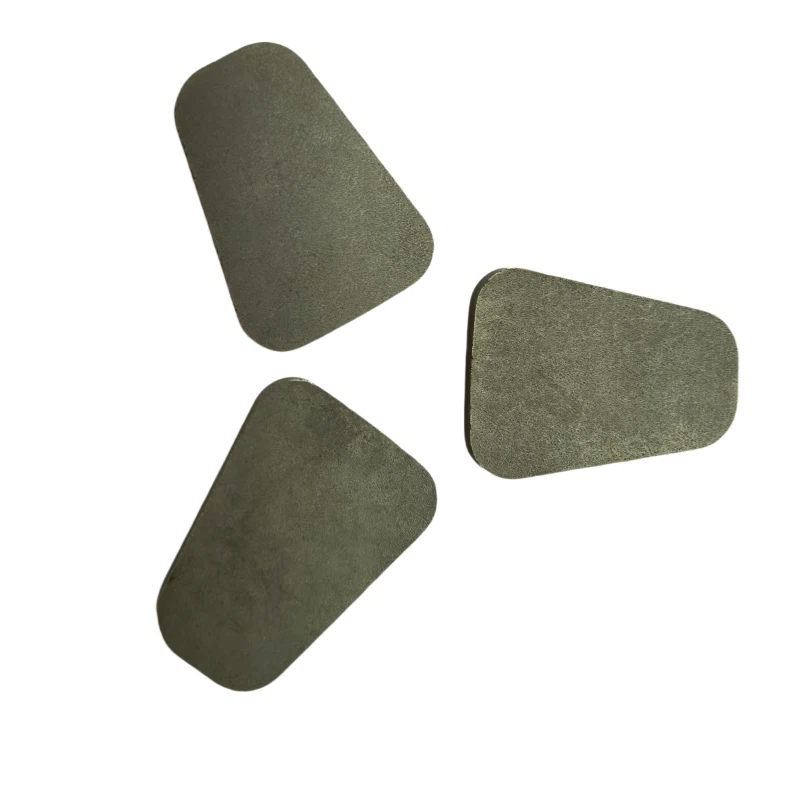

Product Name：Stator spacer
Base material:Somaloy 700HR 3P
Additive(s):0.3% 3P Lube
Compaction:Pressure: 800 MPa Die temperature:
Heat treatment: Atmosphere: Steam
|
Core loss |
||||||||||||
|
[W/kg] |
50/60 Hz |
100 Hz |
200 Hz |
300 Hz |
400 Hz |
500 Hz |
600 Hz |
700 Hz |
800 Hz |
900 Hz |
1000 Hz |
2000 Hz |
|
0,5T |
1.5/1.8 |
3.1 |
6.0 |
10 |
13 |
17 |
21 |
25 |
29 |
33 |
37 |
89 |
|
1,0T |
5.1/6.2 |
10 |
21 |
33 |
45 |
58 |
71 |
85 |
99 |
114 |
130 |
319 |
|
1,5T |
9.5/13 |
20 |
41 |
64 |
90 |
118 |
147 |
177 |
209 |
242 |
276 |
705 |
Measured according to CEI/IEC 60404-6:2003 on ring sample (OD55 ID45 H5 mm).
Origin: China shenzhen
