NdFeB Bonded Magnet Rotors

Details:

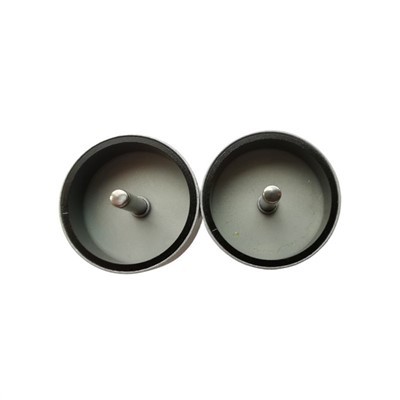

NdFeB Bonded Magnet Rotors are magnetic device composed of bonded magnet and shaft. Bonded NdFeB magnet rotors are usually used as the inner rotor of brushless DC motor, they commonly used in power tools, lawn mowers, electric pruning tools, etc.

Send Inquiry

Description

Send Inquiry

Product name: NdFeB Bonded Magnet Rotors

Specifications: D28*D22*32mm

Surface treatment: Epoxy resin electrophoresis 10-30um

Material: NdFeB

Magnetic properties: Br: 500-600mT, Hcb: 480-720kA/m, Hcj: 480-72kA/m (BH)max: 48-60kJ/m³

Reversible magnetic permeability Urec 1.2

Maximum operating temperature 150℃

Density: 5.6-6.2g/cm³

Surface magnetic field strength: ≥2200Gs

Shape structure: cylindrical

Processing method: bonding molding

Application: NdFeB Bonded Magnet Rotors Commonly used in high-speed motors of 30000-60000RPM, NdFeB Bonded Magnet Rotors can provide higher torque, and they widely used in motor tools, agricultural tools and orchard handheld power tools.
